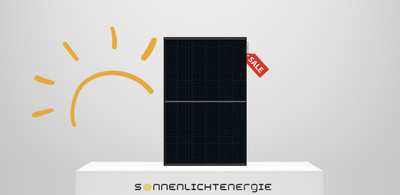

AIKO A475-MAH54Mw 475W Black Frame Neostar 2N
+3
+2

AIKO A475-MAH54Mw 475W Black Frame Neostar 2N

80,90€
On request!
früher 109,90€ Save 26%
Excl. shipping
Lieferzeit: 1-2 Wochen
On request!
Share this product with your friends
ShareSharePin it
AIKO A475-MAH54Mw 475W Black Frame Neostar 2N
Product Details
Marke: AIKO
Module Efficiency:: 23,8 %
Dimension:: 1757 x 1134 x 30 mm
Weight:: 20,6 Kg

AIKO A475-MAH54MwW 475W Black Frame Neostar 2N – High-Efficiency Photovoltaic Module

The AIKO A475-MAH54MwW 475W Black Frame Neostar 2N is a cutting-edge photovoltaic module designed for maximum efficiency, durability, and performance. Built using redesigned N-type cells and All Back Contact (ABC) technology , this module sets new standards in the solar industry. With its innovative design and high-quality materials, it delivers exceptional power output, low degradation, and long-term reliability.


Key Features of AIKO Neostar 2N Series

1. All Back Contact Technology

  • Silver-Free Metallic Materials: The absence of silver in the cell construction enhances the durability of electrical connections, extending the lifespan of both the cells and the entire module.
  • Backside Interconnection Grid: By placing the interconnection grid on the back side, the front surface area available for sunlight absorption is maximized, improving overall efficiency.
  • Lower Temperature Coefficient: The ABC technology reduces heat-related losses, ensuring high performance even in extreme temperatures.
  • Higher Efficiency and Durability: The combination of ABC technology and Half-Cut cell design minimizes power loss and increases module efficiency.

2. Half-Cut Cell Technology

  • Reduced Power Loss: The use of half-cut cells decreases internal resistance and thermal stress, resulting in an additional power gain of 5–10 watts compared to conventional modules.
  • Enhanced Performance: This technology ensures consistent energy production, even under partial shading or low-light conditions.

3. Low Degradation Rates

  • First Year Degradation: ≤1%
  • Subsequent Years Degradation: ≤0.35%/year
  • These low degradation rates allow AIKO to offer a 30-year linear power warranty , ensuring consistent performance over decades.

4. High-Quality Materials

  • Monocrystalline N-Type Cells: Made from premium-grade silicon wafers, these cells deliver superior efficiency and power output compared to traditional P-type modules.
  • Anodized Aluminum Frame: Lightweight, corrosion-resistant, and durable, the frame ensures long-term stability and protection against harsh environmental conditions.
  • High Light Transmission Glass: Double-layered tempered glass with anti-reflection coating enhances light absorption and protects the module from mechanical damage.

5. Certified Reliability

  • Certifications: IEC61215, IEC61730, ISO 9001, ISO 14001, ISO 45001
  • IP68 Junction Box: Ensures dustproof and waterproof performance, making the module suitable for all weather conditions.
  • MC4 Connectors: Pre-installed on 1,200-mm-long wires for easy and secure connections.

Technical Specifications

Parameter
Value
Maximum Power (Pmax)
475 W
Efficiency
23.8%
Cell Type
Monocrystalline N-Type
Number of Cells
108 (Half-Cut Design)
Frame
Anodized Aluminum Alloy (Black Frame)
Glass
2.0 mm Tempered Glass (Anti-Reflection Coating)
Junction Box
IP68, Diodes: 3
Connectors
MC4 Compatible
Temperature Coefficient (Voc)
-0.22%/°C
Operating Temperature Range
-40°C to +85°C
Degradation Rate
≤1% (1st year), ≤0.35%/year (subsequent years)
Warranty
15-Year Product Warranty, 30-Year Linear Power Warranty

Product Distinguishing Features

  1. Stable Efficiency:
    The module achieves a stable efficiency of 23.8% , ensuring maximum energy production even in suboptimal conditions.
  2. Low Degradation:
    Minimal power loss in the first year (≤1%) and subsequent years (≤0.35%/year) guarantees long-term performance and reliability.
  3. Cost Savings:
    The design reduces Balance of System (BOS) costs by minimizing installation time, wiring requirements, and operational expenses.
  4. No Front-Side Electrodes:
    The absence of electrodes on the front side maximizes light absorption, enhancing overall efficiency.
  5. Extended Warranty Coverage:
    A 15-year product warranty and 30-year linear power warranty reflect AIKO's confidence in the module's durability and performance.

Applications

The AIKO A475-MAH54MwW 475W module is versatile and suitable for a wide range of applications:

  • On-Grid Systems: Ideal for residential and commercial installations looking to maximize self-consumption and reduce electricity bills.
  • Off-Grid Systems: Perfect for remote locations where reliable energy storage and generation are critical.
  • Large-Scale Installations: Suitable for industrial and utility-scale projects requiring high efficiency and long-term reliability.
  • Harsh Environments: Designed to withstand extreme temperatures, strong winds, and heavy snow loads, making it ideal for challenging climates.

Why Choose AIKO A475-MAH54MwW?

  1. High Efficiency and Power Output:
    With a peak power of 475 W and an efficiency of 23.8% , this module delivers exceptional performance.
  2. Durability and Longevity:
    The use of premium materials, advanced technologies, and rigorous certifications ensures a long service life.
  3. Sustainability:
    The silver-free construction and low degradation rates make this module environmentally friendly and sustainable.
  4. Cost-Effectiveness:
    Reduced BOS costs and minimal maintenance requirements provide significant savings over the module's lifetime.
  5. Versatility:
    Suitable for a variety of applications, from small residential systems to large-scale industrial projects.

Conclusion

The AIKO A475-MAH54MwW 475W Black Frame Neostar 2N is a state-of-the-art photovoltaic module that combines cutting-edge technology, high efficiency, and long-term reliability. Its innovative design, low degradation rates, and extended warranty coverage make it an excellent choice for customers seeking high-quality, efficient, and durable solar solutions.

Invest in the AIKO A475-MAH54MwW today and harness the power of the sun for a sustainable and energy-efficient future!


For More Information or Assistance

Contact us today to learn more about the AIKO A475-MAH54MwW and how it can meet your energy needs. Our team is ready to assist you with personalized advice and support.


Note:

All technical data and specifications are based on the latest information available. Changes and errors reserved.

Show More
You May Also Like
Nur noch 252 Stück!
AIKO A455-MAH54Db Neostar 2S+ 455W Glas-Glas Full black
AIKO A455-MAH54Db Neostar 2S+ 455W Glas-Glas Full black
AIKO A455-MAH54Db Neostar 2S+ 455W Glas-Glas Full black
Lieferzeit: 2 Wochen
früher 119,90€
Save 24%
90,90€
Excl. shipping
Marke: AIKO
Module Efficiency:: 22,8 %
Dimension:: 1757 x 1134 x 30 mm
Limitiertes Angebot!
AIKO A460-MAH54Db 460W Full black Glas-Glas Neostar 2S+
AIKO A460-MAH54Db 460W Full black Glas-Glas Neostar 2S+
AIKO A460-MAH54Db 460W Full black Glas-Glas Neostar 2S+
Lieferzeit: 2 Wochen
früher 99,90€
Save 10%
89,90€
Excl. shipping
Marke: AIKO
Module Efficiency:: 23,1 %
Dimension:: 1757 x 1134 x 30 mm
Limitiertes Angebot!
AIKO A465-MAH54Db 465W Full black Glas-Glas Neostar 2S+
AIKO A465-MAH54Db 465W Full black Glas-Glas Neostar 2S+
AIKO A465-MAH54Db 465W Full black Glas-Glas Neostar 2S+
Lieferzeit: 2 Wochen
früher 129,98€
Save 29%
92,90€
Excl. shipping
Marke: AIKO
Module Efficiency:: 23,3 %
Dimension:: 1757 x 1134 x 30 mm
Limitiertes Angebot!
AIKO A465-MAH54MW 465W Black Frame Neostar 2P
AIKO A465-MAH54MW 465W Black Frame Neostar 2P
AIKO A465-MAH54MW 465W Black Frame Neostar 2P
Lieferzeit: 2 Wochen
72,90€
Excl. shipping
Marke: AIKO
Module Efficiency:: 23,3 %
Dimension:: 1757 x 1134 x 30 mm
Avaiiable on request
AIKO A470-MAH54DW 470W Black Frame Glas-Glas Neostar 2P+
AIKO A470-MAH54DW 470W Black Frame Glas-Glas Neostar 2P+
AIKO A470-MAH54DW 470W Black Frame Glas-Glas Neostar 2P+
Lieferzeit: 2 Wochen
früher 99,90€
Save 24%
75,90€
Excl. shipping
Marke: AIKO
Module Efficiency:: 23,6 %
Dimension:: 1757 x 1134 x 30 mm
Available on request!
NEU!!
AIKO A500-MAH60Mb 500W Full black Neostar 2S
AIKO A500-MAH60Mb 500W Full black Neostar 2S
AIKO A500-MAH60Mb 500W Full black Neostar 2S
Lieferzeit: 1-2 Wochen
früher 99,90€
Save 10%
89,90€
Excl. shipping
Marke: AIKO
Module Efficiency:: 24 %
Dimension:: 1762 x 1134 x 30 mm
Lieferzeit: Ende August
FelicityESS Solar low-voltage battery storage LUX-Y-48300LG01 15 kWh 300Ah
FelicityESS Solar low-voltage battery storage LUX-Y-48300LG01 15 kWh 300Ah
FelicityESS Solar low-voltage battery storage LUX-Y-48300LG01 15 kWh 300Ah
Ausverkauft!
früher 2.099,00€
Save 21%
1.649,00€
Excl. shipping
Marke: Felicity Solar
Dimension:: 480 x 1100 x300 mm
Weight:: 135 Kg
Fast ausverkauft!

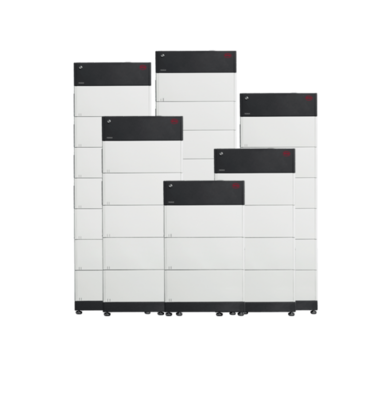

BYD B-Box Premium HVS Hochvolt-Batteriespeicher 12.8
