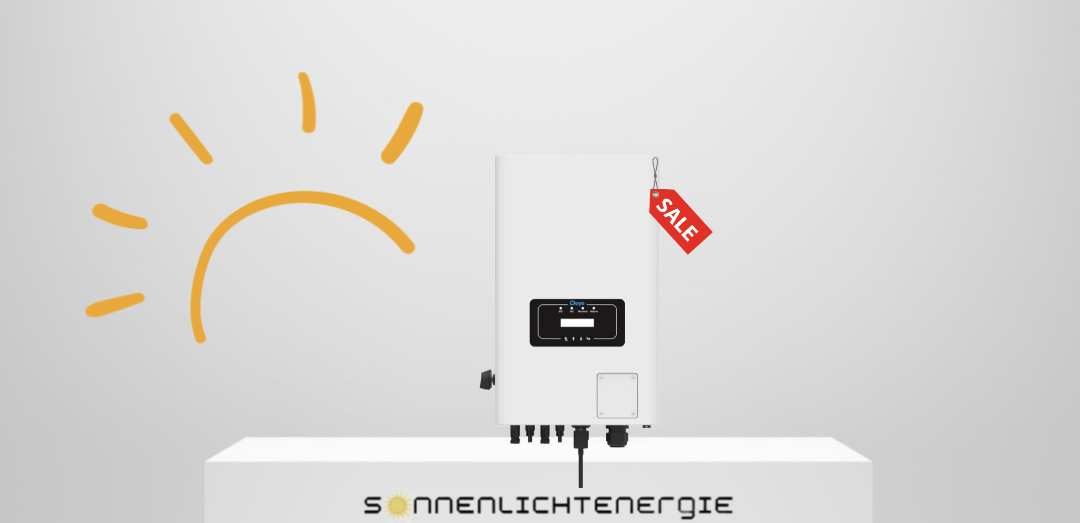

DEYE SUN-30K-G04 String Inverter 3-Phase 30KW

Discover the DEYE SUN-30K-G04 – The Powerful 3-Phase String Inverter for Your Solar System!

The DEYE SUN-30K-G04 is a state-of-the-art, three-phase string inverter with a rated power of 30 kW , specifically designed for commercial and industrial photovoltaic systems. With an impressive maximum efficiency of 98.6% and advanced technology, it offers maximum efficiency, reliability, and flexibility for your solar installation.

---

Why Choose the DEYE SUN-30K-G04?

1. Maximum Energy Yield

• 2 MPPT Trackers: The two integrated MPPTs allow the connection of two different roof orientations or module strings, maximizing energy yield.
• High Efficiency: With a peak efficiency of 98.6% and a European efficiency of 97.8% , it ensures optimal conversion of DC to usable AC power.
• Wide Voltage Range: The MPPT operating range of 200–850 V ensures maximum flexibility in module selection and installation.

2. Intelligent Monitoring and Remote Maintenance

• Easy Remote Monitoring: Thanks to the intelligent monitoring platform, you can monitor and control your PV system anytime and anywhere.
• Remote Maintenance: Parameter configuration and firmware updates can be conveniently performed remotely, simplifying the maintenance of your system.
• Instant Remote Shutdown: In the event of an accident or issue, the system can be immediately shut down remotely to ensure maximum safety.

3. Safety and Reliability

• Comprehensive Protection Features: The inverter includes DC reverse polarity protection, AC short circuit protection, and an optional Anti-PID function to protect your system from damage.
• Zero Export Function: Prevents excess energy from being fed into the public grid, ideal for self-consumption applications.
• VSG Application: Supports Virtual Synchronous Generator (VSG) functionality to improve grid stability in demanding networks.

4. User-Friendly

• Easy Installation: The compact design and intuitive operation make the installation and maintenance of the inverter a breeze.
• Optional Intelligent String Monitoring: Quickly and precisely identify faults at the string level to optimize the performance of your system.

---

Technical Highlights

DC Side:

• Maximum DC Input Power: 39 kW
• Maximum DC Input Voltage: 1000 V
• Start DC Input Voltage: 250 V
• MPPT Operating Range: 200–850 V
• Maximum DC Input Current: 40 A + 40 A
• Number of MPPTs: 2
• Strings per MPPT: 3 + 3

AC Side:

• Rated Output Power: 30 kW
• Maximum Active Power: 33 kW
• AC Grid Voltage: 3L/N/PE 220/380 V or 230/400 V
• Nominal Frequency: 50 Hz / 60 Hz (optional)
• Maximum AC Output Current: 41.7 A / 39.8 A
• Power Factor: 0.8 leading to 0.8 lagging

General Data:

• Maximum Efficiency: 98.6%
• European Efficiency: 97.8%
• MPPT Efficiency: >99%
• THD (Total Harmonic Distortion): <3%
• Grid Frequency Range: 45–55 Hz or 55–65 Hz (optional)
• DC Feed-in Current: <0.5 mA

---

Key Benefits at a Glance

• Higher Yields: Two MPPT trackers enable optimal use of different roof orientations and module configurations.
• Safety: Comprehensive protection features such as DC reverse polarity protection and AC short circuit protection ensure maximum safety.
• Flexibility: Zero export function and VSG application make the inverter ideal for self-consumption and demanding grids.
• User-Friendly: Easy installation, remote maintenance, and optional intelligent string monitoring simplify usage.
• Sustainability: Reduce your CO₂ emissions and actively contribute to environmental protection.

---

Perfectly Suited For:

• Commercial Solar Systems: Ideal for businesses looking to reduce their electricity costs.
• Industrial Projects: Suitable for large ground-mounted installations and complex setups.
• Self-Consumption Optimized Systems: With the zero export function, you can efficiently use excess energy.
• Grid Connection: Optimized for maximum yields and cost-effective operation.

---

Order Now and Optimize Your Use of Solar Energy!

The DEYE SUN-30K-G04 is the ideal choice for modern solar systems that combine the highest efficiency, reliability, and innovative technology. Secure this cutting-edge inverter today and benefit from a 5-year manufacturer's warranty (optional extension available).

For more information or personalized advice, feel free to contact us!

With the DEYE SUN-30K-G04 , you’re investing in cutting-edge technology and a sustainable future.

---

Note:

Please note that all technical data and specifications are based on the latest technology. Technical changes and errors reserved.
