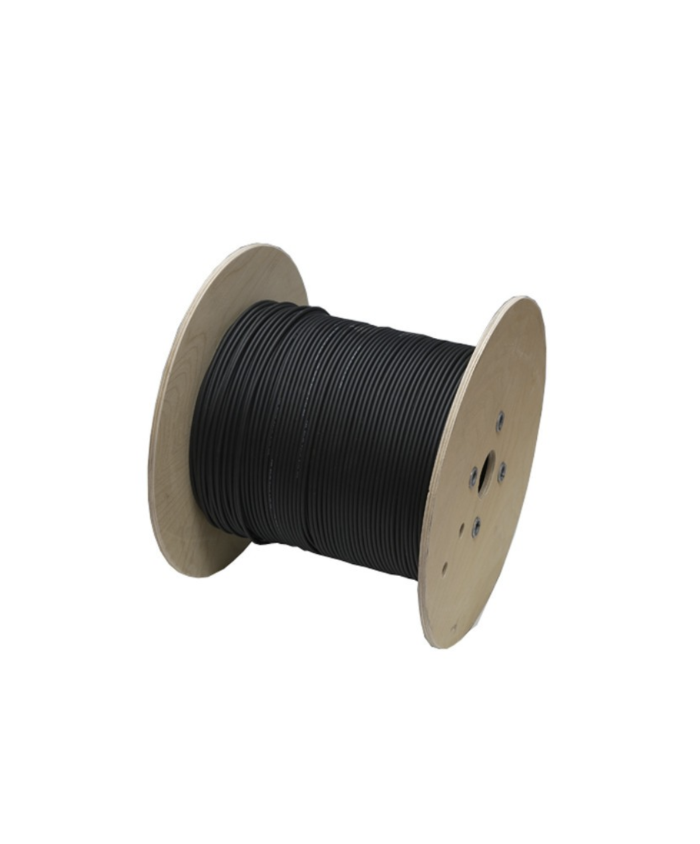

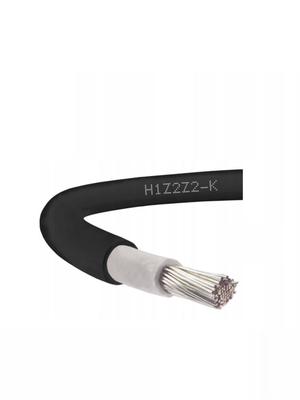

​Solar Cable HELUKABEL H1Z2Z2-K – 1x6mm² (Black)

Solar Cable HELUKABEL H1Z2Z2-K – 1x6mm² (Black)

The HELUKABEL SOLARFLEX®-X H1Z2Z2-K is a high-performance solar cable designed for use in photovoltaic (PV) systems. With its robust construction and advanced features, this cable ensures reliable performance in demanding outdoor environments.

---

Key Features of the HELUKABEL H1Z2Z2-K

✔ High Performance and Safety

• Rated Voltage: 1500 V
• Nominal Voltage (U0): 1000 V
• Test Voltage: 6500 V
• Ensures safe and efficient power transmission in PV installations.

✔ Advanced Material Properties

• Insulation Material: Copolymer – Provides excellent resistance to environmental factors.
• Halogen-Free: Minimizes toxic fumes in case of fire, making it environmentally friendly and safe.
• UV Resistant: Designed for long-term outdoor use without degradation from sunlight exposure.
• Flame Retardant: Meets stringent safety standards for fire resistance.

✔ Durability and Flexibility

• Bending Radius (Rigid Conductor): 5 x cable diameter – Allows for flexible installation in tight spaces.
• Temperature Range:
  • Minimum: -40°C
  • Maximum: +90°C (for permanent connections)
• Suitable for extreme weather conditions, ensuring consistent performance.

✔ Compliance and Certifications

• Certifications: EN 50618, TÜV Rheinland 2 PfG 1990/05.12, TÜV R60115689
• RoHS Compliant: Yes – Free from hazardous substances as per EU regulations.

✔ Technical Specifications

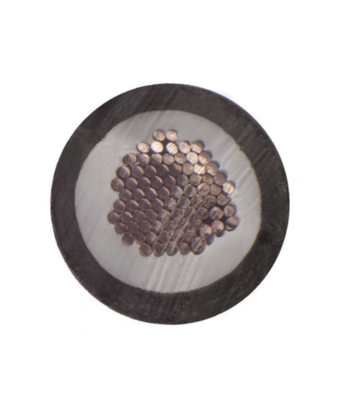

• Conductor Construction: Stranded bare wire, in accordance with DIN VDE 0295 Class 5, thin wire, BS6360 cl.
• Cross-Sectional Area: 1 x 6 mm²
• Outer Diameter: 6.2 mm
• Color: Black– Easy identification in installations.

---

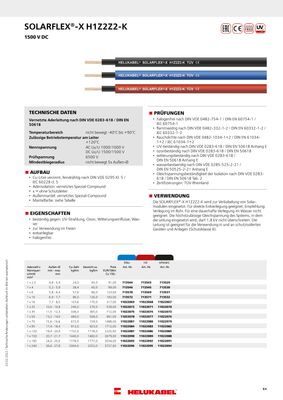

Technical Data Overview

---

Benefits in Detail

✔ Reliable Power Transmission

• The 1500 V rated voltage and 6500 V test voltage ensure safe and reliable operation in high-voltage PV systems.

✔ Weather and UV Resistance

• The UV-resistant and halogen-free properties make this cable ideal for long-term outdoor use, even in harsh environments.

✔ Flexible Installation

• The stranded conductor design and small bending radius allow for easy routing and installation in confined spaces.

✔ Safety and Environmental Compliance

• Halogen-free materials and compliance with international standards (EN 50618, TÜV) ensure safety and environmental responsibility.

✔ Long-Term Durability

• The wide temperature range (-40°C to +90°C) and flame-retardant properties guarantee long-lasting performance under extreme conditions.

---

Why Choose the HELUKABEL H1Z2Z2-K?

The HELUKABEL SOLARFLEX®-X H1Z2Z2-K combines safety, durability, and flexibility in one cable. Whether for residential, commercial, or industrial PV installations, this cable offers maximum reliability and performance. Its compliance with international standards and certifications makes it a trusted choice for solar energy projects.

---

Order Now and Ensure Reliable Solar Connections!

Visit our online shop and secure the HELUKABEL H1Z2Z2-K at an attractive price! If you have any questions, we are always available to assist you. Make the first step toward efficient and safe solar energy transmission.

---

For More Information or Support

Contact us today! Our team is ready to provide personalized advice and tailored solutions.

---

Note:

All technical data and specifications are based on the latest technology. Technical changes and errors are subject to change without notice.
