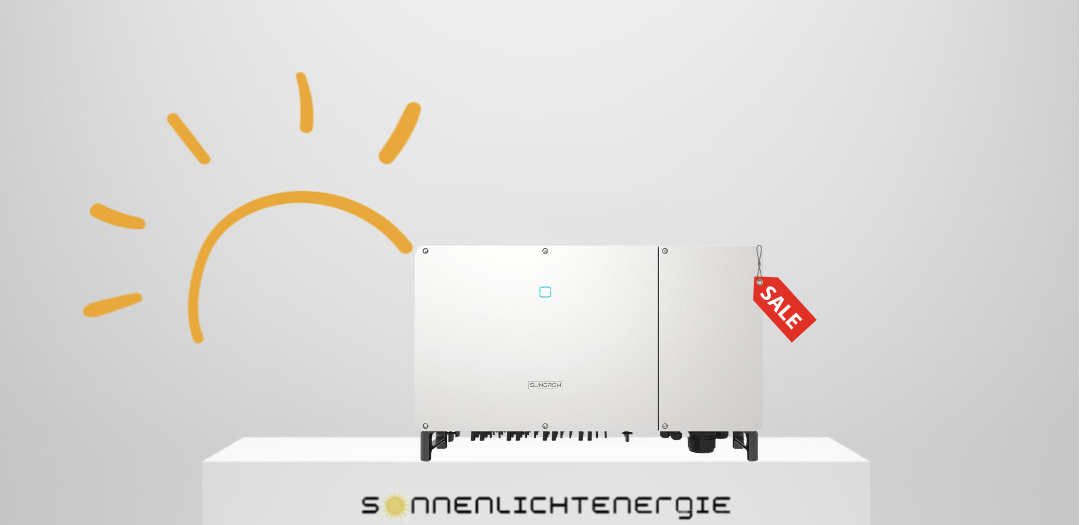

Sungrow Power String-Wechselrichter SG250HX-V117 12-MPPT

Discover the Sungrow Power String Inverter SG250HX-V117 – The Ultimate Solution for Megawatt Solar Projects!

The Sungrow SG250HX-V117 is a cutting-edge string inverter specifically designed for large-scale solar installations. With an impressive peak efficiency of 98.8% , 12 MPPTs, and a maximum DC input voltage of 1500 V , this inverter offers maximum efficiency, flexibility, and reliability. It is the ideal choice for industrial and commercial solar energy projects that demand top performance and innovative technology.

Why Choose the Sungrow SG250HX-V117?

1. Maximum Solar Efficiency

• High Performance: With a maximum AC output power of 250 kW and a peak efficiency of 98.8% , this inverter maximizes the energy yield of your solar installation.
• 12 MPPTs and 24 String Inputs: The 12 independent MPPTs enable flexible system configurations and ensure optimal power generation even under challenging conditions (e.g., shading or different orientations).
• Compatible with High-Performance Modules: The inverter supports modules with a power rating of 500 Wp+ and offers a maximum MPPT input current of 30 A , ensuring optimal use of modern solar panels.

2. Flexibility and Adaptability

• Wide Voltage Range: With a DC input voltage range of 1160–1500 V , the inverter is suitable for various solar module configurations.
• 2-in-1 String Connection: Two strings can be connected per MPPT, simplifying installation and increasing flexibility.
• PID Regeneration Function: The integrated PID regeneration (Potential Induced Degradation) prevents power loss due to voltage-induced degradation, extending the lifespan of the modules.

3. Intelligent Control and Monitoring

• Reactive Power at Night: The inverter can provide reactive power even outside of daylight hours to stabilize the grid.
• Powerline Communication (PLC): Communication occurs via existing lines, eliminating the need for additional communication cables.
• Smart Monitoring: Monitor your energy production in real-time through a user-friendly app. Features like online curve measurement, diagnostics, and remote firmware updates ensure maximum efficiency and maintainability.

4. Safety and Reliability

• Fuse-Free Design: Thanks to intelligent string current monitoring, no additional fuses are required, simplifying installation and enhancing reliability.
• IP66 Protection and C5 Corrosion Resistance: The inverter is dustproof, waterproof, and corrosion-resistant, making it ideal for demanding environments.
• SPD II for DC and AC: Surge protection on both the DC and AC sides safeguards the system against damage from lightning strikes or voltage spikes.
• Compliance with Global Standards: The inverter meets international safety, EMC, and grid connection regulations.

Technical Highlights

DC Side:

• Maximum DC Input Voltage: 1500 V
• MPPT Range: 1160–1500 V
• Number of MPPTs: 12
• Maximum MPPT Input Current: 30 A
• Number of String Inputs: 24

AC Side:

• Nominal AC Output Power: 250 kW
• Nominal AC Voltage: Three-phase, 400/230 V
• Grid Frequency: 50 Hz / 60 Hz
• THDi (Nominal Load): < 3 %

General Specifications:

• Peak Efficiency: 98.8 %
• Operating Temperature Range: -25°C to +60°C (>45°C with derating)
• Relative Humidity: 0–100 % (non-condensing)
• Noise Level: < 35 dB(A)
• Protection Rating: IP66 / C5 Corrosion Resistance
• Dimensions: 363 mm (L) x 660 mm (W) x 1051 mm (H)
• Weight: 99 kg

Your Benefits at a Glance

• High Efficiency: Maximizes energy production with a peak efficiency of 98.8% .
• Flexibility: Compatible with a wide range of solar modules thanks to a broad voltage range and flexible configuration.
• Sustainability: Reduces CO₂ emissions and promotes environmentally friendly energy systems.
• Ease of Use: Simple installation, intuitive operation, and intelligent remote monitoring.
• Reliability: Durable design and comprehensive warranty secure your investment.

Perfectly Suited For:

• Large-Scale Installations: Ideal for industrial and commercial solar projects requiring high performance and efficiency.
• Open-Area Installations: Suitable for solar parks and other open-area applications.
• Optimization of Self-Consumption: Minimize dependency on the public grid by maximizing self-consumption of solar energy.
• Grid Stabilization: Provides reactive power at night to stabilize the electricity grid.

Order Now and Harness the Power of Solar Energy!

The Sungrow SG250HX-V117 is the perfect choice for modern solar installations that combine high efficiency, reliability, and innovative technology. Secure this advanced inverter today and benefit from a 5-year product warranty and top-notch customer service.

For further information or personalized advice, feel free to contact us!

With the Sungrow SG250HX-V117 , you are investing in cutting-edge technology and a sustainable future.

Package Contents:

• 1 x Sungrow SG250HX-V117 String Inverter
• Installation Manual and Documentation
• Warranty Card

Note:

Please note that all technical data and specifications are based on the latest technology. Changes and errors reserved.
